Wednesday, December 09, 2009

Grid Bubble with Other Information

Let's say that your would like a Grid Bubble to show both the grid name and something else. Here's how to do it...

You will need to make a custom Grid Head family with the lines and circles desired using the grid family template.
You can add two labels, the Grid Number and a custom parameter. You will also have to make a ‘Shared Parameter’ for year or phase, or both.

Then you will load that family into the project and apply it to the System Grid family.

You will also need to add the Shared Parameter to the Project Parameters. Then you will be able to type the year or phase into the grid.

Monday, November 09, 2009

Revit Structure - Missing Columns - Graphical Column Schedule

Thank You Steve Stafford, Revit OPED for documenting this:

If columns are not showing on your column schedules make sure the columns are intersecting with grids and Levels.

http://revitoped.blogspot.com/2009/05/revit-structure-missing-columns.html

Thursday, November 05, 2009

Revit Wish List

'Wishes will be collected three times per year; the top 10 wishes from each cycle will be sent on to the development teams at Autodesk. After each cycle the wish list starts anew to ensure that the wishes are current. The top wishes from the year will be presented to Autodesk in person at Autodesk University.'

'These wishes can only be considered for Revit 2012 and beyond...'

Here's the link...
http://augi.com/revit/ballot.asp

Wednesday, October 28, 2009

Visibility issues, Volume 1

Visibility Issues are among the most common issues with Revit. These can usually be chalked up to the following...

Category is turned off in the view

Object Graphics or Visibility overridden (ie., set as transparent, turned off)

View Range

Plan Regions

Worksets (turned off in Visibility Overrides)

Design Options

Phases

Object being blocked by another (like a floor slab)

View Properties-Discipline(21-May-10)

Worksharing:

Keep in mind that when working in a team environment (Worksharing) others may be editing your settings without you knowing. One way to mitigate this is by making some initialed views, especially when it comes to the overall 3D and Section Box views. Another common solution is to yell at the people who are doing this.

Wednesday, October 21, 2009

New Revit Release Now...

Subscription Advantage Pack for Autodesk Revit Architecture 2010

The Autodesk® Subscription Advantage Pack for Autodesk® Revit® Architecture 2010 extends the capabilities of Autodesk® Revit® Architecture 2010 software. Productivity-enhancing functionality and features better support modeling, coordination, and documentation, while improved tools help you work more efficiently within the software.

Watch this to see what it's all about...

http://www.subscriptionvideos.com/subscription_rac_video.html

Monday, October 19, 2009

Revit Standards - File Path Locations

You can set up standard locations for file paths to standard Families and Templates in the following way. You will need to do this at each workstation if Revit has been installed.

-Go to: Application 'R' menu
-Options

-File Locations
-Places
-Add the name of the location and then browse.

I don't recommend pointing your rendering library off the local machines. This will cause a serious slowdown in rendering times.

The locations will then be available on the left-hand side of 'load' and 'open' dialog boxes.

Monday, October 05, 2009

Revit Arch 2010 Structural Slab Span Symbol

The Revit Architecture 2010 Help files describe how a Structural Slab can be added along with a Span Direction Symbol. Autodesk has confirmed that this is an error in both the Help file and Structural Slab tool. Some Revit Structure files got into the Revit Arch Help files. They said that this will be addressed in the 2011 version. Although they didn't elaborate they will probably remove the reference out of the help files and removing the Structural Slab tool altogether from RAC.

Showing Beams Above in Revit Architecture

Here are some facts that may help in explaining how to show beams which are above:

Floorlan views only look down.

Ceiling Plan views only look up.

The linetype called Overhead is just a standard linetype like 'Hidden' or 'Thin Lines'. Revit will not detect things overhead.

The 'Top Range' of the View Range dialog box is only there to establish how high the 'Cut Plan' can go. Again, Revit will not detect things overhead.

The 'Structural' View Templates set the View Range a little lower but still will not show overhead lines automatically. It will also change the look of the beam lines.

So, here's one workaround:

1. Make a Beam Line Style...

Manage-Settings-Line Styles-Modify Subcategories-New-Call it Overhead Beams-Set the Line Pattern and Line Weight as desired.

2. Temporarily set View Range...

View Properties-View Range-Top Range-Set it above your beam height-Cut Plan-Set it above your beam height.

3. Temporarily change your Detail Level to Fine. This is so you can see the 3D beams.

4. Use the Annotate-Detail Line Tool to draw a line beside the 3D beam using the 'Overhead Beams' Line Style.

5. Use the Align tool to align your line to the middle of the 3D beam. Click the Lock so it is closed.

6. Change your View Range back to normal.

This will line will stay (mostly) connected with the 3D beam. This technique can be used for balconies above, floorplates above, roof overhangs etc.

Please note that there is a bug involving sloping beams and beam systems showing up even when above. Autodesk will be fixing this so I wouldn't use it.

Thursday, September 24, 2009

Autodesk SketchBook Mobile

Saw this on David Lights blog...

Available for 2.99 on the App Store. Is this possibly the cheapest of Autodesk's software?

Autodesk SketchBook Mobile
The Autodesk® SketchBook® Mobile painting and drawing application extends your digital sketchpad to your Apple® iPhone® or Apple iPod touch®. With the same paint engine as Autodesk® SketchBook® Pro software, SketchBook Mobile offers professional-grade painting and drawing tools in a streamlined and intuitive user interface. Use it to digitally capture your ideas as napkin sketches or produce artwork on-the-go.


Website:
http://usa.autodesk.com/adsk/servlet/item?siteID=123112&id=13872203

Video
http://www.youtube.com/watch?v=YwYm5YhA0pQ

Thursday, September 10, 2009

Oh, and by the way...Reinstalling Revit and Plugins

When you reinstall Revit you have to reinstall all of the plugins and in some cases reauthorize them. I wish we could do something about this for the sake of the CAD/BIM Managers out there. This is an issue that Autodesk needs to address as they release one official version and at least two bug-fix versions per year.

Monday, August 31, 2009

Error Importing Sketchup into Revit 2010

I was about to show the great 'import Sketchup' feature to a client when all of a sudden I got the error 'Unable to Import Sketchup'. 'It does it, trust me, really.'
This is a issue is known by Autodesk and they are working to resolve it. In the meantime the only way to fix it is to reinstall.

Monday, August 24, 2009

Imported 3D AutoCAD not Sectioning

Problem:
A 3D AutoCAD file imported into Revit is not cutting when sectioned.

Solution:
The AutoCAD file first needs to be imported into a Family.
You have options:
1. Start the In-Place Mass command and then import the AutoCAD file. This option works well for large, one time imports like surrounding buildings etc. (use the same method for Sketchup files.)
2. Start a Family based upon a Family Template of your choice (ie. specialty equipment) then import the AutoCAD. Load this Family into your Project. This option works well for creating a quick 3D Family with existing 3D CAD geometry.

Thursday, August 13, 2009

Room Object Not Placed

Have you ever deleted a Room Object and you get a 'deleted but still in project' message? This is a good time-saving feature. Let's say that you build schools, it's a given that you will need the following rooms; Bathroom, Janitor and my favourite, THE Office.
You can pre-make these in your template. When you go to place a Room Object look in the Options Bar (pictured) and drop down the Room list. You have saved yourself from typing the room name and perhaps other important parameters.




More about Room Objects in Schedules here.

Thursday, August 06, 2009

Nested Window Visibility with Wall Healing

This one is hard to explain in plain English. Here's the scenario...

Door family with nested window families as sidelights.
Visibility parameter applied to the windows for left and right options.
When inserted into a wall (in a project file -.rvt) checking the sidelights on and off will not leave a hole where the window was. Rather, the wall will 'heal'.


The key is this:
In the window family
Category and Parameters, Shared (check box) is checked.



Thanks to Jeff Steinhauer from the AUGI forum for helping me on this one...
http://forums.augi.com/showthread.php?p=998259#post998259

Monday, July 13, 2009

In-Revit Solar Radiation

Use the Solar Radiation Technology Preview to analyze the effects of solar radiation on various surfaces of your conceptual building model...

http://labs.autodesk.com/utilities/ecotect/

Monday, June 08, 2009

Revit 2010 Decal Path

If your path is too long to a specific decal image it will not render. You can workaround this by adding the path of your image to the Options-Rendering-Additional..Paths.

Autodesk is aware of this issue....

Friday, June 05, 2009

FIXED: Revit Arch 2010 to Navisworks 2010: Windows Not Cutting Walls

There has been a hotfix posted for this today. You can find it here:
http://usa.autodesk.com/adsk/servlet/ps/dl/item?siteID=123112&id=13379829&linkID=10382102


Please be aware that there is a bug in the export to Navisworks function in the 2010 product line. Walls are covering up windows. This issue has been submitted to Autodesk Development. Read more at the AUGI forum here...http://forums.augi.com/showthread.php?t=101078&highlight=wall+window





Monday, June 01, 2009

Rise and Run Roof Slope Tag

Thank you Autodesk for adding one of my wishlist items from way back! This may be a small thing but it's important to residential designers. Thanks again!

I found this on David Duarte's blog Revit Beginners...(Thanks David)

Go to Annotate... Spot Slope... and you might notice that Revit has a new slope annotation that works in plan and elevation view. (choose an arrow or triangle symbol from the options bar)

Now try annotating a roof slope with a spot annotation triangle and you might notice something peculiar. Maybe your roof is 6:12 but the annotation read 4:12. Why the error? Because Revit is annotating the Hip not the face of the roof...Try hitting the tab key while floating over the roof edge and you'll see that the slope tag can report the slope of the hip or the face. The tool just happens to default to reporting the hip first.


This tool does not yet work on ramps or railings.

full article...
http://revitbeginners.blogspot.com/2009/04/revit-2010-new-spot-slopes.html

Tag Box Size Relative to Contents

Is it possible to have a tag's box size expand with the contents?

For example, if a room is numbered '1' it doesn't need a big box, but if it's numbered '1001' it does. (This is applicable to all tags really.)

The answer is no, it does not expand automatically. You will need to make a few different types that have different sized boxes.

Friday, May 29, 2009

Curtain Wall Corner Mullions

Curtain Wall Corner Mullions are preloaded in the default template. You have the following choices of shapes: (see image)

Quad
L
V
Trapezoid

You can make more types by editing the properties. (see image) You can edit material, thickness and general size.
You cannot make a custom profile for corners like you can for non-corner mullions.
If you would like a custom corner you will be best to make it out of a structural column family.
If you are missing the corner mullion families from your project file (maybe they have been purged) do the following.
-Project Browser
-Families
-Curtain Wall Mullions
-Right Click on desired heading
-Choose New Type
Corner mullion size can be adjusted in their Type Properties.
Also, the corner can be non-perpendicular and the corner mullions will adjust.

Click here for more about glass corners.

Wednesday, May 27, 2009

Curtain Wall - Butt Joint Corners

Butt joints at corners can be done the following ways…

Option A

1. Make a new curtain wall panel using the curtain wall panel template
2. Offset the geometry on one side.
3. Save and load the family into your project
4. Make a Curtain Wall Style with Vertical Mullion, Border 2 Type, None
5. Draw the curtain walls on the corner. The wall endpoints will be lined up but the glass will appear to be overlapping by an inch or so.
6. TAB until you can select the panel.
7. Replace the panel with you corner panel.


Option B

1. Draw the curtain walls on the corner. The wall endpoints will be lined up but the glass will appear to be overlapping by an inch or so.
2. TAB until you can select the panel.
3. Edit in-place
4. Stretch the glass panel back by 1”
5. Finish


Option C

1. Draw the curtain walls on the corner. The wall endpoints will be lined up but the glass will appear to be overlapping by an inch or so.
2. TAB until you can select the panel.
3. Turn off the panel’s visibility
4. Draw a wall style which is the thickness of the glass panel and has the material ‘glass’.

Any of these choices are a pain. This is one of the workarounds I would like to see addressed...

Tuesday, May 12, 2009

Lineweights Bug and Workaround


We have noticed that there is a discrepancy in the lineweights between Titleblocks and Projects. It seems that the Titleblock Family's lineweights, although set to the number, appear and print thinner. Autodesk has confirmed that this is an error and plan on fixing it in a future release.


For now you will need to bump your lineweights up (set to a higher number) on your Titleblock Family in order to match the lines on your sheet.




Thursday, May 07, 2009

Database Link in Revit

We've been waiting for this one for a long time...

RDB Link Tool for Revit Family
Technology Preview (COMING SOON)
Overview

The RDBLink tool allows the user to export data from the elements in a Revit project and maintain relationships against data that exists outside of Revit. The tool allows for both import and export of the project data and will allow the user to make changes on the database side that affect the data within the project once imported. Also, during subsequent exports of the data to the same database, only data from the project will be affected, so any new fields or tables added to the database for your own purposes will remain intact along side the newly exported data. The RDBLink import tool provides a grid view of the data to allow the user to make any final edits before import. This grid control also allows the user to create Revit Shared Parameters which will add new fields for those parameters to the database in the related tables. Changes to these new fields within the database will update these Revit Shared Parameters upon future imports.

more...http://labs.autodesk.com/utilities/revit_rdb/

thanks RevitOPED for the tip

Tuesday, May 05, 2009

Autodesk University Presentations

Public voting is open for Autodesk University Presentations. You can vote here:
http://au.autodesk.com/

I have submitted three proposals.

Session title:
Mutual Symbiosis in the Revit Habitat: Users and Reseller Techies Unite!

Session description:
Software users and software specialists enjoy a symbiotic relationship. Both parties have access to business opportunities and technical resources which are hard to get at while working alone. This class will expose and identify many of the opportunities that a good user-specialist relationship can offer. A BIM/CAD Manager from a progressive, Revit-centric firm and a Reseller Techie will share their experiences on key topics. The secrets to getting technical answers fast from resellers and Autodesk. Techniques on getting the most out of students and teachers in training will be discussed. Plus, learn how to connect with even more experts by starting and running a successful users group. If your symbiotic relationship has been strained, learn how to unite and squeeze more out of a valuable opportunity.

Key learning:
Expand your business network
Get technical answers fast
Start a local users group
Get the most out of students and teachers
Expand your technical resources

Target audience:
BIM/CAD managers, Reseller Application Specialists

Session title:
Navisworks: Coordination as Easy as a Game

Session description:
Turn your building into a video game and email it across your team. Swap materials and render instantly. While taking a virtual tour redline, comment and save animations on the fly. Watch your building get built, in real time. Animate the crane for clearance. Email the whole file to your team for free viewing. In this class we will learn how to take your large multi-meg Revit files and turn them into a smooth, interactive file small enough to email. This is how many consultants, using many different kinds of software, solve the coordination problem.

Key learning:
Import Revit Files
Walking and Flying
Creating an Environment and Applying Materials
Animate!
Timeline your Construction

Target audience:
Architects, Contractors, Builders, Engineers, Designers, Resellers

Session title:
Stairway, or Ramp to Revit Heaven

Session description:
Stairs, ramps and railings are some of the hardest tools to master in Revit. We will discuss specialized techniques for making parking ramps, multi-landing and poured concrete staircases, as well as unique rail conditions. You will learn the ‘rules of thumb’ when making stairs, ramps and railings while exploring the limits of what can be done. We will cover how to properly annotate and detail stairs in sections and plan. If you feel that your stairs haven’t quite reached heavenly heights join us in this session as we climb the stairway, or ramp to Revit heaven.

Key learning:
Make a sloping and curving parking ramp
Make a multi-landing stair
Learn some stair and ramp ‘rules of thumb’
Annotate and detail stairs
Explore the limits

Target audience:
Architects, Engineers and designers who need to make stairs.

Tuesday, April 28, 2009

Elevations and Phases

Elevation markers disappear in different Phases. How do you coordinate the extents and views of these different phases? You can address this by doing the following:

1. Select the Elevation Marker, Cut and Paste Aligned-Same Place. You would do this into the view with the Phase set as desired. The copied Elevation Marker will be in the same place but on the desired Phase.

2. Make a Scope Box. You can drag the extents of the Scope Box to determine where Grids and Levels start and stop. Click on the Grids and Levels, Element Properties, choose the Scope Box you just made. Scope Boxes also have properties that allow you to control the view it's visible in.

3. Organize your Browser. This can also be done by adding a parameter to the views.

Wednesday, April 22, 2009

Room Number Intelligence

More and more I am seeing the need for room number intelligence or awareness. I am not alone on this, many of our clients are asking this.

Yes, I can schedule what level a ceiling is on but what about what room it's in? You can do this a little bit with the doors so we know that it's possible. What room is that patient bed, furniture, or light etc. in? It would be nice to then schedule 'by room'. For instance, Room 101 contains: patient bed X, X number of lights.

Please comment...

Tagging Ceiling Heights in Room Schedules

This can't be done automatically.

Here are a couple of workarounds...

1. From release 2009 and on you can do the following:

Settings-Area and Volume Computations-Calculate Volumes
Make sure the Room object is bounded to the ceiling.
Add a Calculated Value to the Room Schedule using the following info:
Name: Ceiling Height, Type: Length, Formula: Volume/Area
Please note that this workaround only works where the Room and Ceiling are the same shape. The ceiling must be flat.

2. Pre 2009, ie.2008 has another workflow. You may even choose do this in all releases because of the complications of the workaround mentioned above.

Make a Shared Parameter called Ceiling Height
Apply this to the Room Object in the Project file as well as the Room Tag
Make a duplicate of your ceiling plan.
Tag all ceilings showing Height Offset from Level
Tag all Rooms
Now that you can see the actual ceiling height you will be able to manually update the Shared Parameter 'ceiling height' in the Room Tags.
This will keep a coordinated Room Schedule, Tags with the ceiling height.

Friday, April 17, 2009

Can't Edit Hatch in Family

Many times you will insert a Family into Revit which has hatch on it. You will not be able to edit the location or orientation of that hatch while it is in the Project. You would need to open the Family, adjust the hatch, then reload it back in.

Thursday, April 16, 2009

AutoCAD Pline Widths in Revit

You want to Import or link an AutoCAD file with plines representing walls. The plines are set to the actual thickness of the wall. When this is imported into Revit the plines lose their thickness.

Changing the Revit lineweight is not the greatest solution because the lines change thickness based on scale. Also, you would have to do some calculations to get the corresponding width right.

You would be best to make the change in AutoCAD before you bring the file in. To that end I've attached a lsp routine which will convert plines to mlines with the corresponding width. You might want to add another string of code which explodes the mlines into lines because mlines don't come into Revit either.

Here's the thread where I found the lsp file written by Joe Burke...
(note: this code leaves out closed segments, you will need to change the plines to 'open'.)

http://discussion.autodesk.com/forums/thread.jspa?messageID=1163735

Here's a cut and paste of the code...

;;;thanks Joe Burke
; CHANGE LINE/PLINE TO MLINE
(defun c:lml ()

;returns list associated with a DXF code
;arguments key: DXF code, alist: object data list
(defun massoc (key alist / x nlist)
(foreach x alist
(if (eq key (car x))
(setq nlist (cons (cdr x) nlist))
)
)
(reverse nlist)
) ;end

;(setq s (ssget))
(setq s (ssget '((0 . "LINE,LWPOLYLINE"))))
(setq teller 0)
(repeat (sslength s)
(setq en (ssname s teller))
(setq ent (entget en))
(if (= "LINE" (cdr (assoc 0 ent)))
(setq PtLst (list (cdr (assoc 10 ent)) (cdr (assoc 11 ent))))
) ;if
(if (= "LWPOLYLINE" (cdr (assoc 0 ent)))
(setq PtLst (massoc 10 ent))
) ;if
(command "mline" (foreach pt PtLst (command pt))) ;point list fed to
mline
;(command "erase" en "")
(entdel en)
(setq teller (1+ teller))
) ;repeat
(princ)
) ;end

Wednesday, April 15, 2009

Conditional Formatting Trick...

I just saw this trick on Steve Stafford's blog...

When you are creating/editing a schedule and select a value that can be formatted, like Area or a Number value for example press the ALT & N keys in the formatting tab. You will then be able to select a range or do other snazzy things.

His full article...
http://revitoped.blogspot.com/2009/04/conditional-formatting-was-unfair.html

Thursday, April 09, 2009

Shared Parameters File

Do I need to send it with my Project file?
Will all of the parameters give errors if it is deleted or moved?

The simple answer is no.

Deleting or moving the actual Shared Parameters File does not cause any immediate errors, unless you try to make a parameter from it again. The information from that file is saved with the main Project rvt file. That means that you do not need to send it with a Project file. If the users at the other end want to edit, add or use it they will either need to get yours or make an exact copy themselves.

Here's a little more explanation...

This goes to show just how good Steve Stafford of Revit OpEd is. This is a 2005 article from his blog (which he wrote on a Sunday).

"...deleting the shared parameter from the shared parameter file (there is no link to the shared parameter file) doesn't directly affect a family or project that already uses it. Only when you remove it from a family or project will it affect the existence of data. Also you won't be able to assign or use the parameter again after it is deleted, since a new parameter by the same name is unique in the world as far as Revit is concerned. "

The rest of the article...http://revitoped.blogspot.com/2005/07/shared-parameters-part-3.html

Wednesday, April 08, 2009

Autodesk Software Assistance

This is nice news. If you are out of a job in the design industry there is an opportunity for you to get free software and maybe even training within the next few months. Please read the full press release here...
http://pressreleases.autodesk.com/index.php?s=press_releases&item=553%3C%2Ftd%3E

A little extra,
If you are in Ontario, Canada and need a business loan or grant check out this site...

http://www.grants-loans.org/ontario-grants.php

Tuesday, April 07, 2009

Select All Instances Tool Dangerous

I would recommend that all new users not use the Select All Instances tool. If the tool was 'Select All Instances in View', then fine but not as it is. Why? If you pick a piece of text in a drafting view and then use 'Select All Instances' all text of that type will be selected. If you then delete, it's all gone in every view. This holds true for walls, doors and everything.

Linked File Scope Boxes Printing

When a linked file which contains a Scope Box is printed the Scope Box border will print. This will happen even if the 'Hide Scope Boxes' checkbox is ticked.

As a workaround you will need to hide them in each view by using the Visibility/Graphics Overrides box.

Please note that you can override the visibility in the element properties of the Scope Box. If you turn it off in every view you will not be able to click on it again to edit it.

Revit 2010 When and How

The Revit Architecture 2010 release is fast approaching.

The when is the middle of April.

The how is a little more difficult...

Subscription customers must choose how they would like their software upgrades to be delivered this year (in Canada).

The delivery options are:
1. Do nothing. Your 2010 Autodesk software DVD / CD will automatically be shipped to you in 30 days. (add on top of this the delivery time which can take anywhere from a few days to weeks)
2. Download your 2010 Autodesk software using the Autodesk Subscription Center.
3. Login to the Autodesk Subscription Center to request a DVD / CD copy of your 2010 software and Autodesk will ship your DVD / CD after you submit your request.

If you need full instructions to get into subscription center call your reseller.

Tuesday, March 31, 2009

Activating Revit on a Slow Network

If you are consistently having trouble getting a Revit license from the server it may be that you have a slow network. You may need to add the following Environment Variable.
(this is found under System, Advanced, Environment Variables.)

Variable Name: FLEXLM_TIMEOUT
Variable Value: 1000000

This will give Revit some breathing room to get a license from the server.

Thursday, March 19, 2009

Newport and Revit

Having a say in Autodesk product development is a unique opportunity that we enjoy in this city, Toronto. Having done some testing myself I can assure you that Newport is going in the right direction. It's also nice to see how seriously the developers take our opinions. If you're not close by, maybe you can get in on the Beta when it comes out? If you are interested in participating contact Ian Hooper at ux.tester@autodesk.com .

Tuesday, March 17, 2009

Architects Should Make Ceiling Levels

In talking with the growing MEP group of users it seems apparent that architects should make ceiling levels. This would help in the following ways...

Copy/Monitor would be able to bring the ceiling heights directly into Revit MEP saving hours.

Walls can be drawn to the ceiling height without user math.

Ceilings heights can be adjusted in fewer clicks by just adjusting the Level.

Feel free to comment...

Thursday, February 26, 2009

Game Engine for Architects


Autodesk® Project Newport - real-time 3D story building technology for architectural visualization and presentation. With game-engine technology and breakthrough ease-of-use, Project Newport enables architects to show their design in context, rapidly explore design options, and create vivid and immersive 3D presentations. Newport brings architectural designs to life by expressing design intent at every stage of a project.
This may be of interest...



Wednesday, February 25, 2009

ORUG Summit-March 4th



ORUG Summit - Wednesday March 4th 6:30 - 9:00 PM
Please join us for our first ORUG Summit. We will have three topic discussion tables:
CAD Manager Issues, Project Manager Issues, and Miscellaneous Topics.

Date: Wednesday March 4, 2009Time: 6:30 PM to 9:00 PM.
Location: Alice Fazooli's, 294 Adelaide St W, Toronto ON, M5V 1P6. Click here for map.
For those taking the TTC, it is conveniently located near both Osgoode and St. Andrew stations on the Yonge-University-Spadina line.
Guest: Charles Simco is a Toronto Litigation lawyer at Shibley Righton LLP who will be available to offer his opinion at the Legal Contract issues discussion table.
Introductions, Welcome and News

Jay Polding will update us about Revit 2010 and what's been going on for the past four months. If you would like to become an ORUG member or attend this meeting as a guest, please contact Jay Polding at jpolding@cadmicro.com. There is no charge to attend.
Topic Discussion Tables

CAD Manager Issues

API
Office Standards and Templates

Project Manager Issues
Integrated Project Delivery
Legal Contract Issues
Miscellaneous Topics
Revit 2010
Tips and Tricks
There will be 1 moderator at each table and 2 note takers.
Notes will be posted to the ORUG Blog at http://www.orug.ca/.
CAD MicroSolutions Inc.65 International Blvd Toronto ON M9W 6L9P: 416-213-0533 or 1-888-401-5885 F: 416-213-0538http://www.cadmicro.com/ solutions@cadmicro.com

Adding Decimal Places to a Tag

How do you add more decimal places to a tag? For instance, the Property Line tag has two decimal places by default but you may want three. The answer to this also applies to changing a tag from Metric to Imperial units or other formatting issues.

Open Family which you would like to edit. (M_Property Line Tag.rfa)

Click on the Label. (Distance)

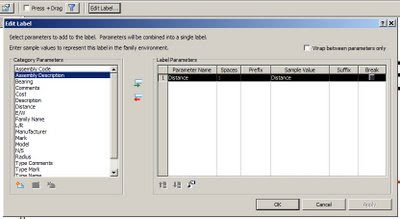

Click Edit Label from Options Bar




Click (highlight) on the Parameter which you want to change.

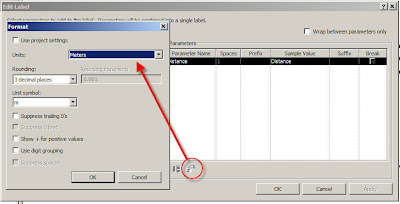

Then click the 'Edit Parameters Units Format' button. (Hand pointing with number sign)

Once it's changed you can save and reload the family.

Friday, February 20, 2009

Revit 2010 Build Checker

Looks like this might be useful...

The Beside The Cursor Revit Build Checker has been updated to support Revit 2010 products when they are available. No need to launch Revit and search for the build number...just launch my script to get a report on installed versions of Revit from Release 9.1 through 2010.
Also works with 64 bit Windows XP and Vista.
Also works with Revit MEP and Revit Structures.

http://www.integr-8.com/besidethecursor/

Wednesday, February 11, 2009

Revit 2010 First Impressions

Autodesk continues to focus on the Revit platform, and they've been busy! Here's what the big picture looks like for this release...

User Interface
This needed attention and was given. Looks like the Type Selector has been enhanced to show preview images. The 'ribbon' in AutoCAD 2009 has been frustrating at times. From the images that I've seen the Revit ribbon is well organized.

Native 64bit support
This enhancement cannot be understated. It's not flashy but it can make a huge difference in the size of model that you work on. Users won't have to 'break up' models into links as much anymore. Now we can finally move beyond 4gb of RAM!

Freeform Modelling
It's funny because you wouldn't think that the masses of designers need this, but many do. When you're designing in 3D it's amazing the array of shapes needed. Even if you're making a 'classic' (rectangle) building there are custom column capitals, window lintels, furniture, lighting and other things that require non-rectangular shapes. I'm looking forward to getting into this feature.

There will be more but that is just a sampling. There are other sites like revit3d.com which go into greater depth and even have videos.

Looking forward to April...

Wednesday, January 07, 2009

Lineweight Control

Where are lineweight settings controlled? Where are Imported Lineweight settings controlled?

Lineweights are configured for each file. If a team is working on one file(worksharing) and one person changes the line settings, the file has new line settings. These are found under the Settings drop down menu. This is also true of Object Styles.

The lesson here is a common one in Revit, if you change it in one place it changes everywhere. So, if you want a thicker linetype, make a new one.

Imported Lineweights are controlled by a text file stored in C:\Program Files\Revit Architecture 2009\Data\ importlineweights-dwg-default.txt. You can edit it and make new ones. These settings do not move with the rvt file, they are particular to a workstation. Potentially two users could import the same file and get different lineweight results.

A team may want to make one of these text files and distribute across the team as needed.

Monday, January 05, 2009

Try Ecotect for Free

Autodesk has recently purchased Ecotect and is making the software available for free (trial basis) on this site...

http://ecotect.com/downloads

Ecotect is an environmental simulation software.
